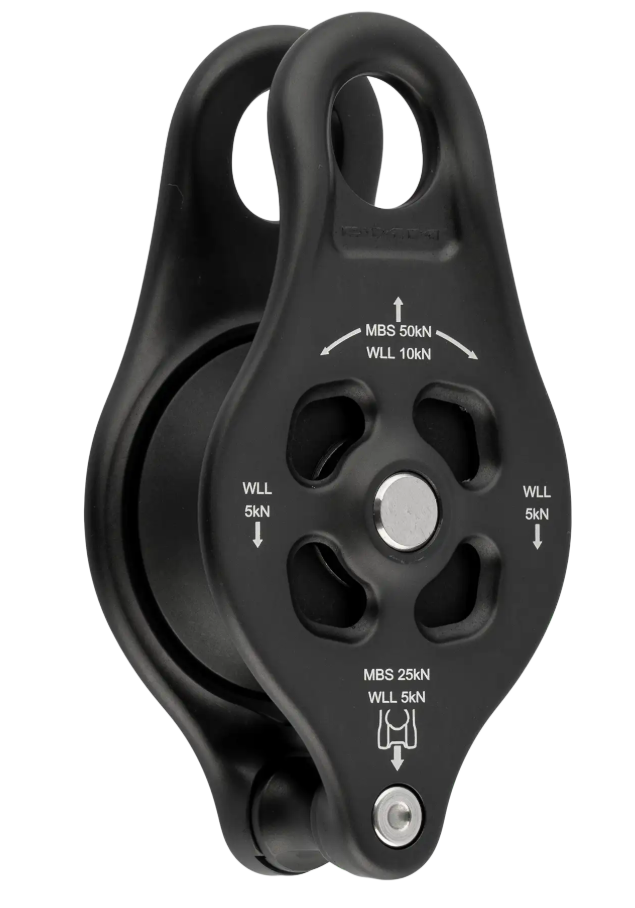

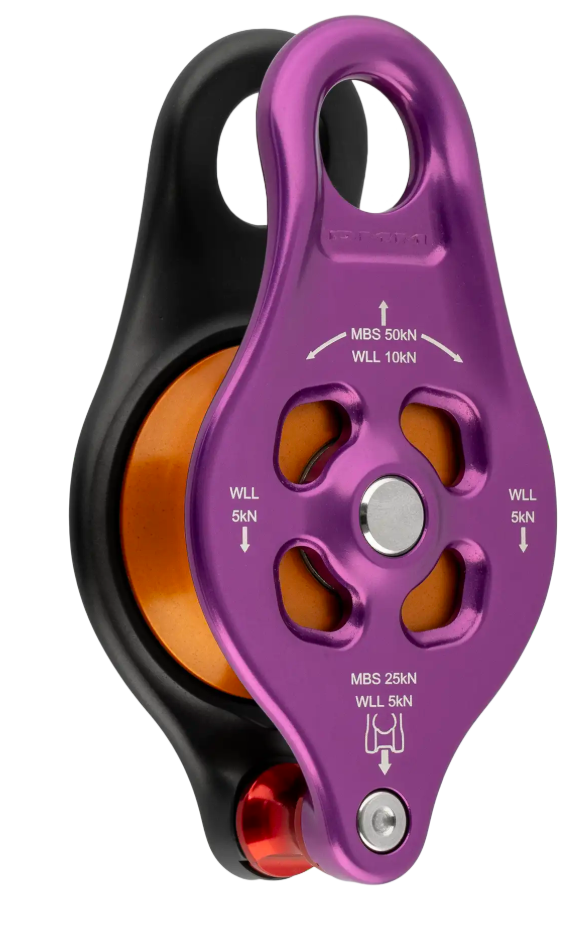

DMM Pinto Rig 2 Pulley

Details: Full strength attachments at eye and becket provide a wide range rigging options

Fixed side plate design is easy to clip into and load onto tensioned ropes

Hot forged and robust, with smooth rope and textile friendly fairleads and edges

Connect directly in with textile components for extra versatility: increase lift height, minimize space required, or enhance tolerance to torsion

Recessed sheave design helps rope feed smoothly from all angles

Sealed ball bearings for high efficiency and low maintenance

Optional spacer available separately for use with rope connection

Tamperproof construction

Made in Wales, and certified for peace of mind

MBS: 50kN, WLL: 10kN

Dimensions: 115 x 60 x 37mm Weight: 222g

Rope Diameter: 16mm Max

Certifications: EN12278:2007, NFPA 2500 (1983) 2022 ED (G)
