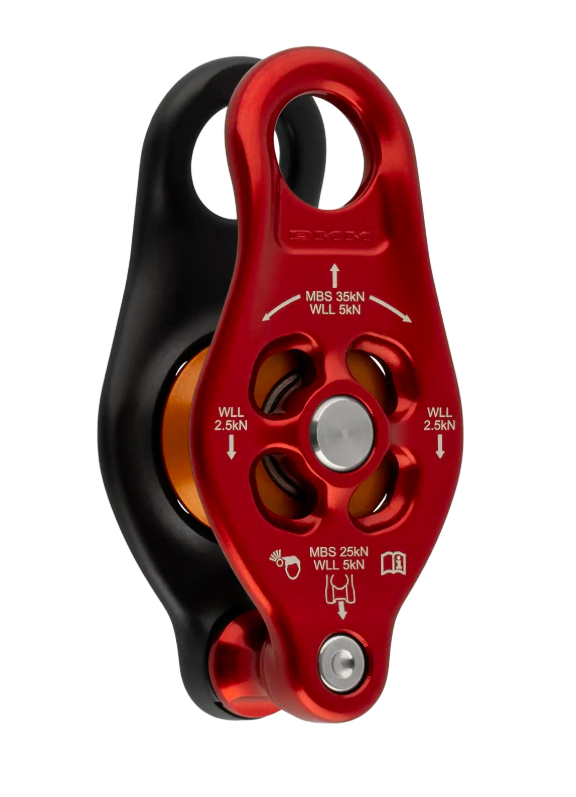

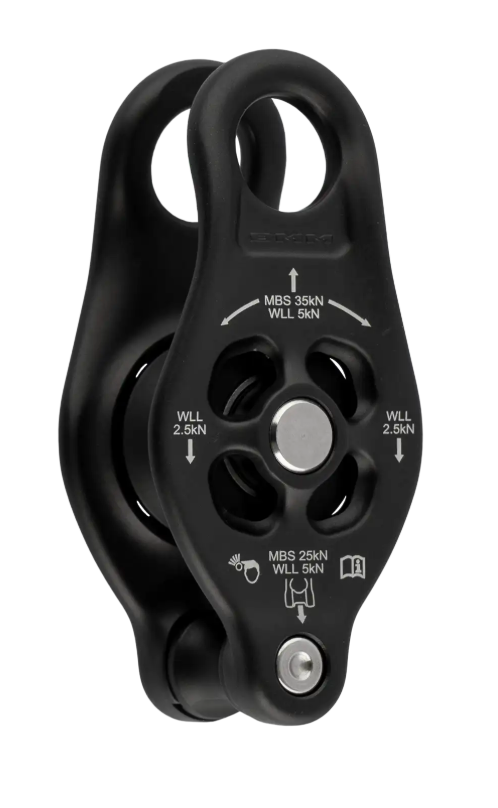

DMM Pinto 2 Pulley

Description: The Pinto (Pulley I Need To Own) is loved the world over, but even classics deserve an upgrade, which is exactly what we’ve done with the Pinto 2 and Pinto Rig 2. With smooth lines, textile friendly connections and a full strength becket, Pinto pulleys are incredibly versatile pulleys that work well in most moving rope systems. Not just a makeover: we’ve kept the same compact and lightweight form of the original Pinto but fitted it with efficient ball bearings meaning it will do everything it always has done better than ever. The Pinto 2 features a recessed sheave design to create a completely smooth rope channel meaning your rope or tagline will never snag and always sit on the sheave when feeding in at odd angles.

Details: Full strength attachments at eye and becket provide a wide range rigging options

Fixed side plate design is easy to clip into and load onto tensioned ropes

Hot forged and robust, with smooth rope and textile friendly fairleads and edges

Connect directly in with textile components for extra versatility: increase lift height, minimize space required, or enhance tolerance to torsion

Recessed sheave design helps rope feed smoothly from all angles

Sealed ball bearings for high efficiency and low maintenance

Optional spacer available separately for use with rope connection

Tamperproof construction

Made in Wales, and certified for peace of mind

MBS: 35kN, WLL: 5kN

Dimensions: 95 x 45 x 34mm Weight: 117g

Rope Diameter: 14mm Max

Certifications: EN12278:2007, NFPA 2500 (1983) 2022 ED (G)
